5000Liters/day seawater and underground desalination reverse osmosis system, watermaker

FOB Reference Price:Get Latest Price
US $7,500-8,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Youber
Model Number:
YB-SWRO-5000LPD
Ro system Dimension:
92X95X145cm
Power:
4.6KW
Voltage:
AC380V,50HZ
Capacity:
5000liters/day
Recovery rate:
20%
Feedwater TDS:
<45000PPM
Freshwater TDS:
<600PPM
Control:
automatic control
HP pump:
SS316L material
Frame material:
Anti-corrosion Stainless steel Frame
Packaging & Delivery
Packaging Details
Customized plywood case packing
Delivery Time
About 10 working days

5000L/D mobile seawater desalination and underground water treatment RO machine for drinking water use

seawater desalination RO plant/RO desalination watermaker

Product Description



YB-SWRO-5000LPD RO system technical parameters

YB-SWRO-5000L
*Testing flow rate
400L/H
Recovery rate
15-20%
*Suggested to use flow rate
250L/H
Power
4.6KW
Applicable power
AC380V,50HZ
Working temperature
5-45℃
Inlet water TDS
<45000ppm
Freshwater TDS
<600ppm
Design pressure
1000PSI
Working pressure
850PSI
Inlet water residual chlorine
<0.1ppm
Inlet water SDI
<5
Inlet water turbidity
<1
Inlet water PH
Neutral
Equipment specification
92X95X145(cm)
Equipment net weight
240Kg
Packing specification(wooden box)
104X100X154(cm)
Packing gross weight
300Kg



5000L/day seawater desalination RO plant Main configuration

Model/main configuration
YB-SWRO-5000L
Core filtration component
USA DOW4040 sea water desalination membrane 2 pcs
Pretreatment
Sand filter and 5 micron PP filter 2pcs
Post treatment
14W America Hanovia UV sterilizer to ensure the final production water quality
Raw water pump
High quality stainless steel raw water pump, 2.0TPH flow rate, pump lift 25M
High-pressure pump
High quality SS316L high-pressure pump
Instrument
Raw water pump inlet water pressure gauge, high-pressure pump
Inlet water pressure gauge, fresh water flow meter
Online conductivity meter
Korida online conductivity meter
Optional Configuration
Raw water liquid level switch

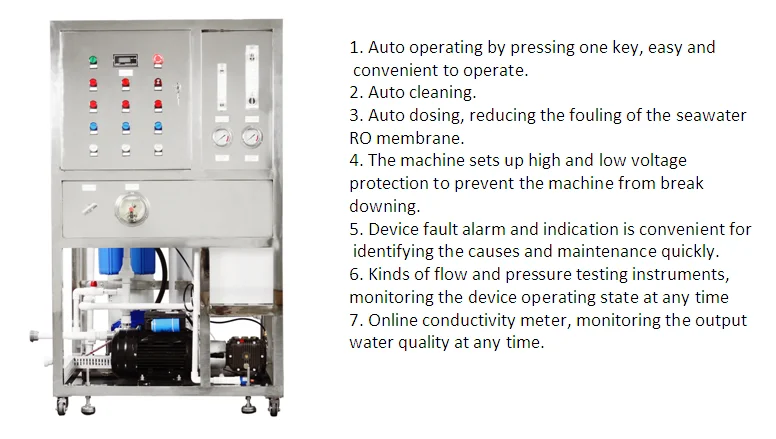

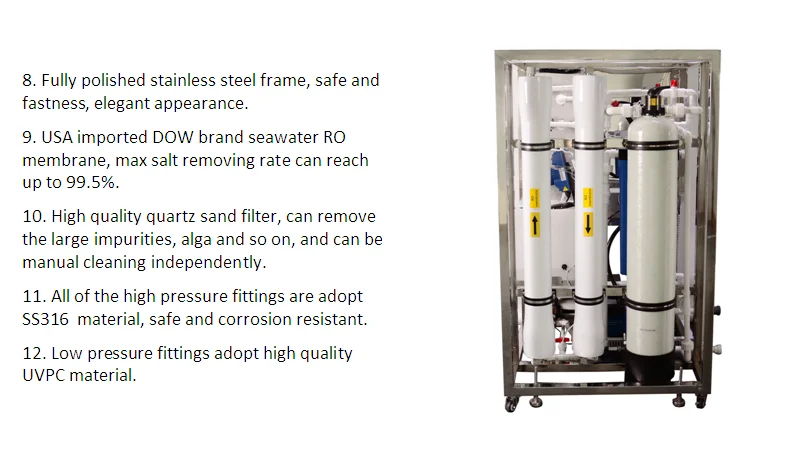

YB-SWRO-5000L/day portable seawater desalination RO plant product

Advantages & Characteristics:

Applied range of YB-SWRO series portable seawater desalination machine

Portable seawater/salty water desalination RO system can be used in:

(1)  seaside villa, seaside villa house drinking water use;

(2)  island family, island restaurant, island hotel drinking water use; inflatable water islands and island drinking water purifier;

(3)  salty alkali lake, rivers in some middle east regions drinking water;

(4)  desert underground water drinking water use, underground water purifier;

(5)  marine drinking water use, marine boats, marine ships, army boats,  army ships, marine lights boats, marine drinking water maker;


Packaging & Shipping





Packaging details:

Portable seawater desalination RO machine packing: Plywood case packing for exporting.



Shipping:

Shipment by air or by sea.

We have shipping forwarder to deliver all over the world, customers also can use your own shipping agents.









Our Services



  • YB series portable seawater desalination machine also has modern design and high integration etc. characteristics.
  • YB series portable seawater desalination machine, volume 90cm L * 86cm W * 140cm H, only weight 150-200 KG, moveable design, easy to move and assemble.
  • YB series portable seawater desalination machine has most matching accessories, can directly use after connect with water and power, easy operation.
  • YB series portable seawater desalination machine has a wide range of power supply, can be connected with common household AC power, gasoline/diesel generator, also can be connected with solar and wind etc. environmental energy.
We are specilized in manufacturing portable seawater desalination RO system, Models:

500L/day, 1000L/day, 2000L/day, 5000L/day, 8000L/day, 1000L/day seawater desalination RO machine for drinking water use. We also accept OEM/ODM service based on customers for portable and medium size seawater desalination RO machine.



500Lilters per day, 1000L/day, 2000L/day seawater desalination Ro machine:



5000L/D RO unit

Sea water desalination machine RO system process flow diagram:



CE certificate for portable and movable seawater desalination RO machine:

Company Information



As the content of salt in the seawater is too high, that can not be used directly, there are mainly two methods to desalinate seawater, distillation and reverse osmosis. Distillation is mainly used for super-huge type seawater desalination and heat energy rich area, energy consumption is very high. Reverse Osmosis is very widely applicable, low energy consumption and high desalination rate, so it‘s widely used.

•We use the international best quality of seawater RO membrane. The membrane‘s salt removing rate is very high, with stable performance, safe and reliable. The HP pump we used is the international brand which is specialized in seawater desalination, with high and low pressure protection device, ensure the safety and reliable of the equipment. The treated water quality meets the national life drinking water quality standards (GB5749-85), do not add any chemicals, can be used for direct drinking, fresh and sweet.

•For the portable use, reliable water, cheap price etc., after a long time of design and practice, we integrate the reliable technology and advanced technology, make our equipment stand out! From here on, you will experience the different use feelings!
