250L/hour used for outdoor boats drinking water sea water desalination equipment RO plant

FOB Reference Price:Get Latest Price
US $7,500-8,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Youber
Model Number:
YB-SWRO-5000LPD
Ro plant Dimension:
94*96X140cm
Power:
4.6KW
Voltage:
AC380V,50HZ
Capacity:
5000liters/day
Recovery rate:
20%
Feedwater TDS:
45000PPM
Freshwater TDS:
<600PPM
Control:
automatic control
HP pump:
SS316L material
Frame material:
Anti-corrosion Stainless steel Frame
Packaging & Delivery
Packaging Details
Customized plywood case packing
Delivery Time
About 10 working days



5000L/D mobile seawater desalination machine for drinking water use

seawater desalination RO plant/RO system



Product Description

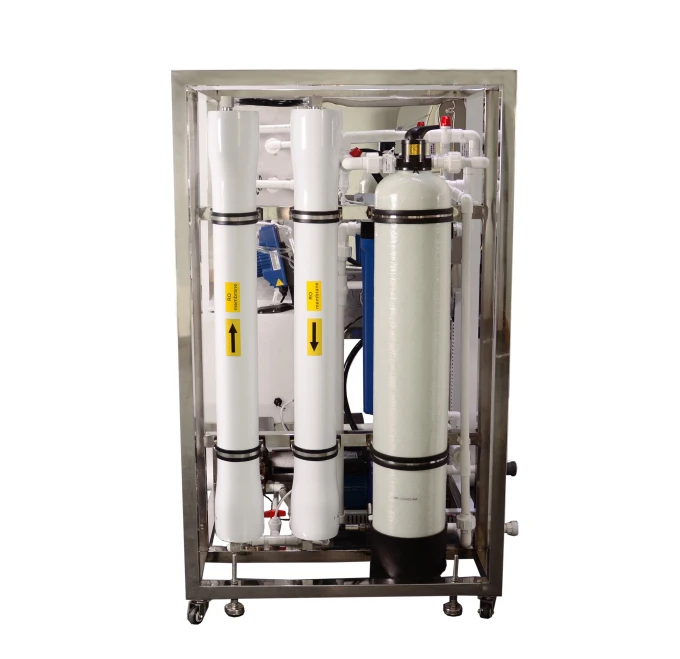

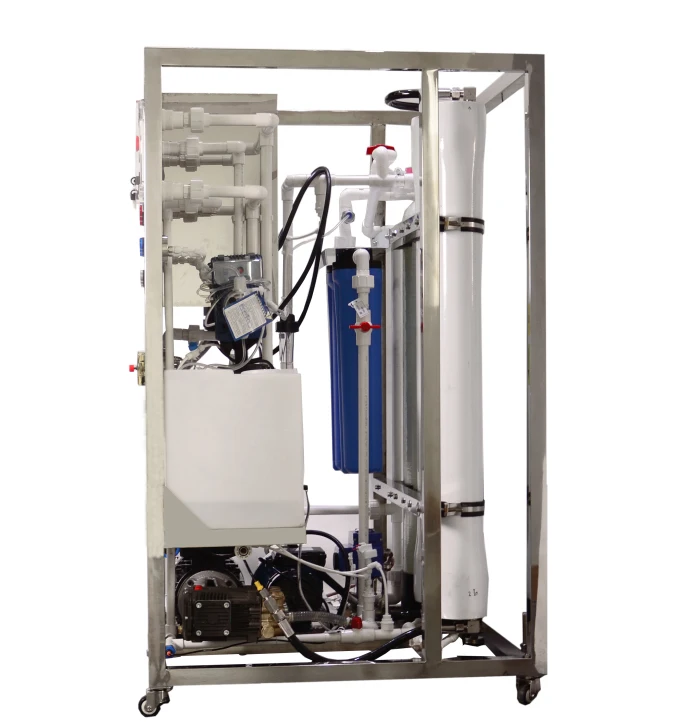

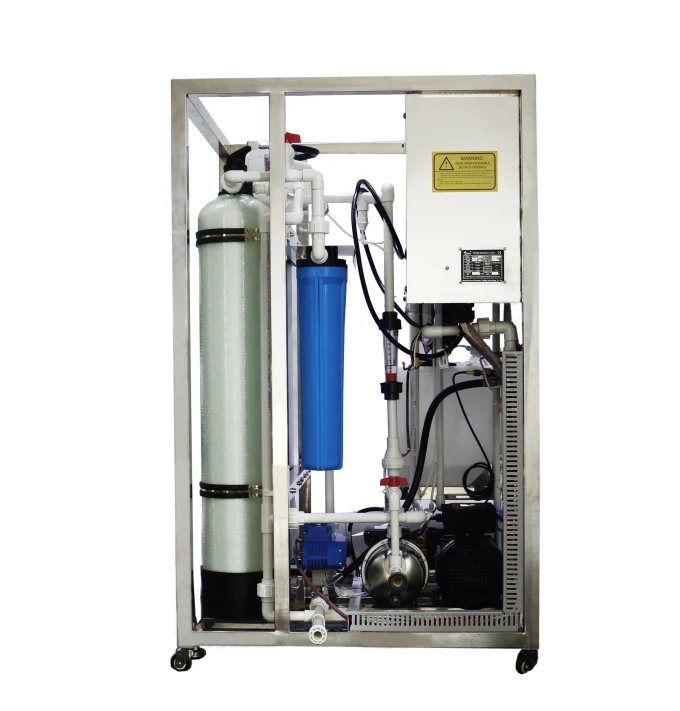

YB-SWRO-500LPD Seawater Desalination RO machine, photos as below:

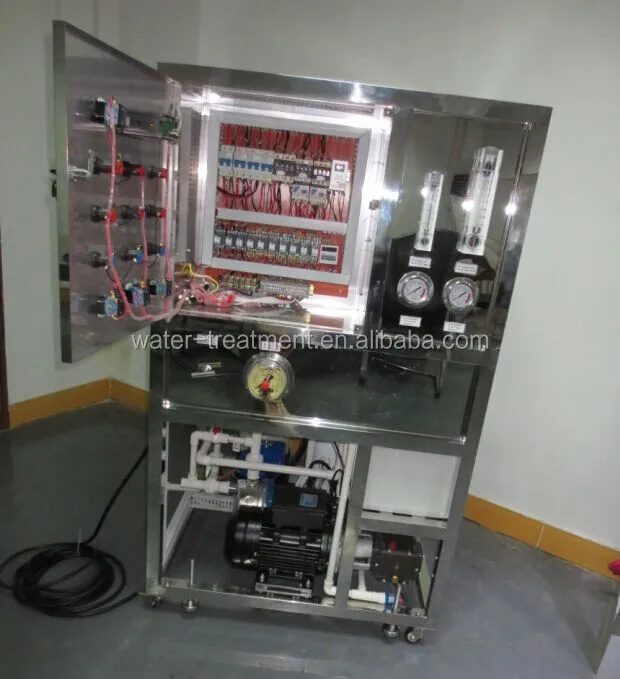

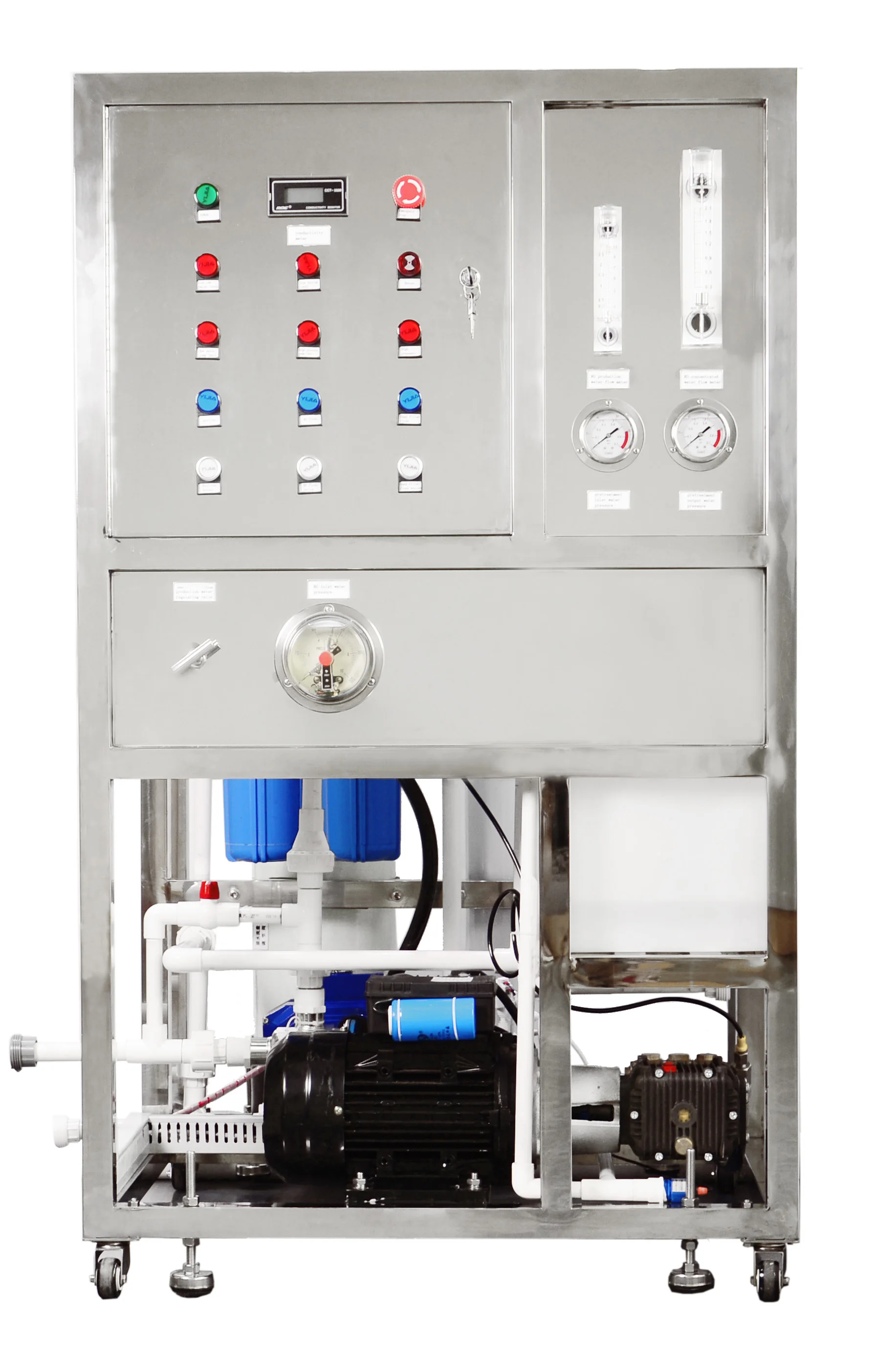

First type: Desalination machine with button

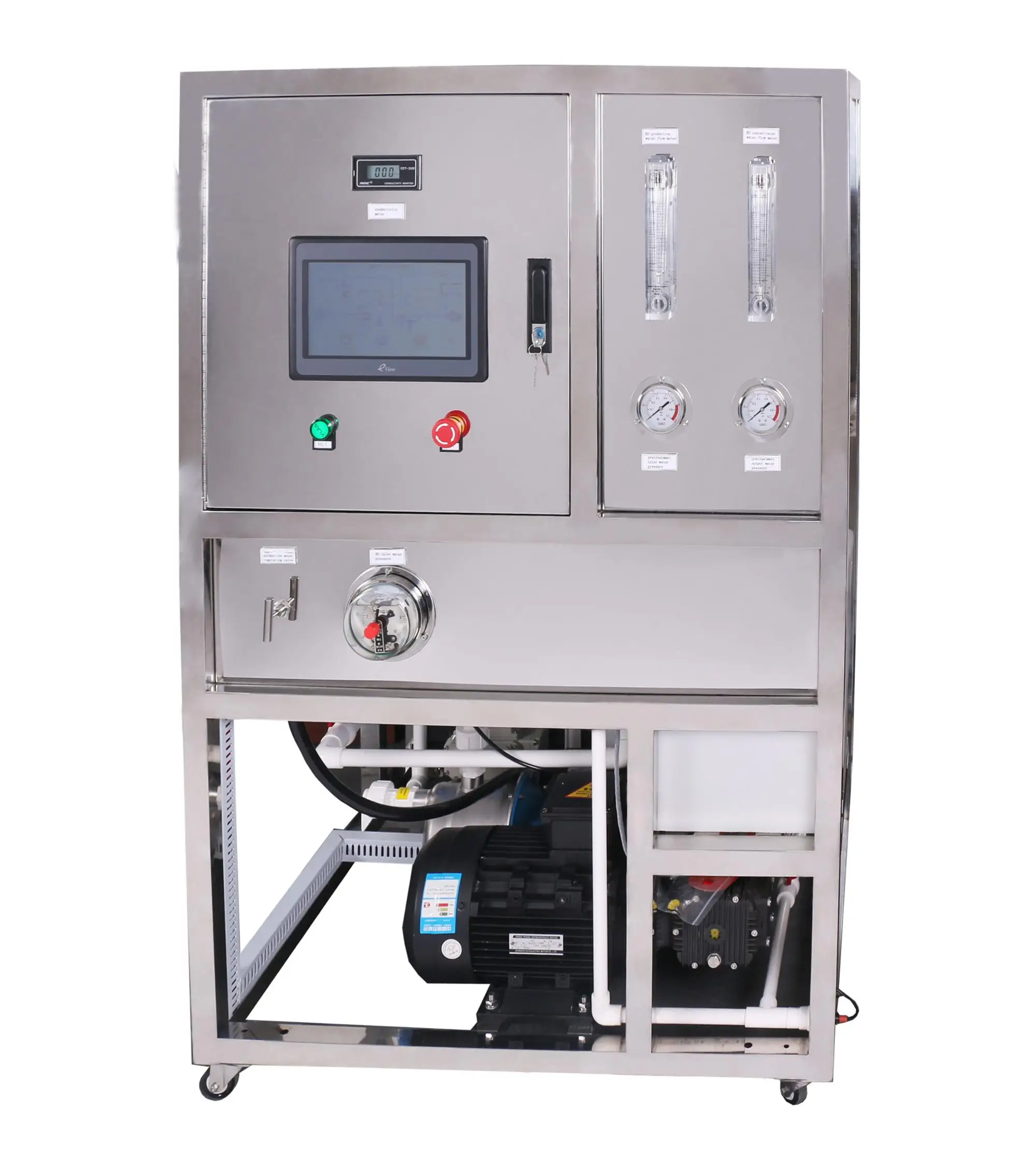

Second type: Desalination machine with PLC automatic control+touch screen





YB-SWRO series portable seawater desalination machine product

Advantages & Characteristics:

1. Auto operating by pressing one key, easy and convenient to operate.
2. Auto cleaning.
3. Auto dosing, reducing the fouling of the seawater RO membrane.
4. The machine sets up high and low voltage protection to prevent the machine from break downing.
5. Device fault alarm and indication is convenient for identifying the causes and maintenance quickly.
6. Kinds of flow and pressure testing instruments, monitoring the device operating state at any time
7. Online conductivity meter, monitoring the output water quality at any time.
8. Fully polished stainless steel frame, safe and fastness, elegant appearance.
9. USA imported DOW brand seawater RO membrane, max salt removing rate can reach up to 99.5%.
10. High quality quartz sand filter, can remove the large impurities, alga and so on, and can be manual cleaning independently.
11. All of the high pressure fittings are adopt SS316  material, safe and corrosion resistant.
12. Low pressure fittings adopt high quality UVPC material.
13. SEKO dosing pump, accurate dosing, reducing the fouling of the seawater RO membrane
14. High quality 1um pleated PP filter, it can remove the fine particles within 1um, protects effectively the seawater RO membrane.
15. SS316L high pressure pump, safe and corrosion resistant, low failure rate, running more stable.
16. High quality 5um PP filter, as a economical and practical prefilter.
17. Domestic high quality stainless steel raw water pump.
18. Universal wheel and adjusting legs make the machine move easier and portable, and is suitable for installation and use under more conditions.

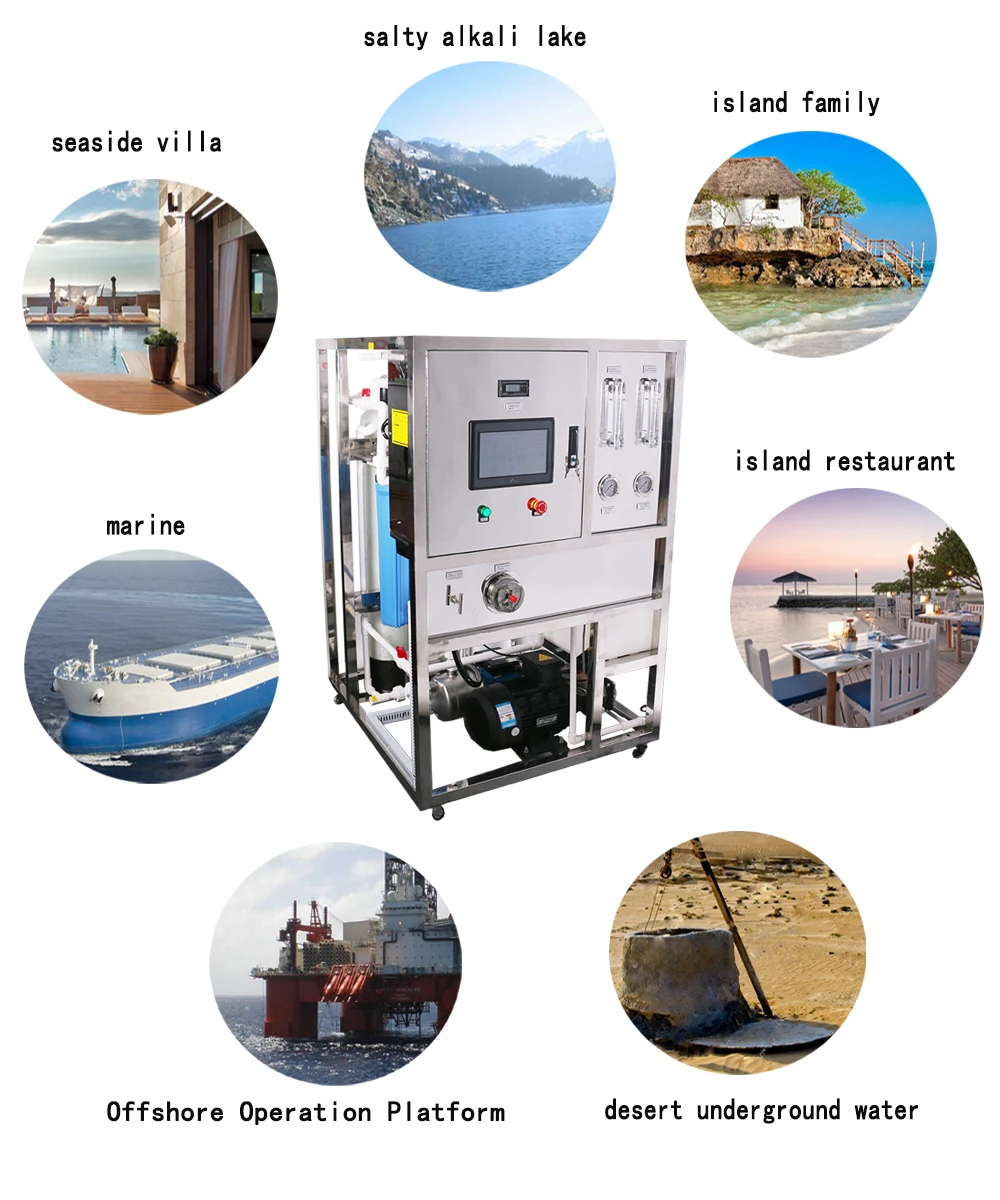

Applied range of YB-SWRO series portable seawater desalination machine

 Youber Portable seawater desalination machine Application ranges:

1. Can be used for ships, fishing boats, yachts, marine, navy drinking water use;
2. Can be used for island family, island restaurant, seaside villa, island resorts drinking water use;
3. Can be used for salty alkali lake drinking water use;
4. Can be used for desert underground water;
5. Can be used for offshore operation platform and floating house;



5000L/D RO unit Operating environment:

1. Equipment placed stably (after positioning, adjust the feet), not placed in damp, easy to splash water.

2. Power supply: reference the equipment nameplate.

3 The water quality requirements:

    Inlet water TDS: <45000ppm

    Production water TDS: <600ppm(25℃)

    Working pressure: <1000psi

    Working temperature: 10-45℃

    Inlet water Residual chlorine : <0.1ppm

    Inlet water SDI: <5

    Inlet water turbidity: <1NTU

    Inlet water PH: 3<PH<10,(Suggest using under neutral conditions)

4. Recovery rate: YB-SWRO-5000LPD        20%(25℃)



Sea water desalination machine RO system process flow diagram:



Packaging & Shipping



YB-SWRO-5000LPD Portable seawater desalination machine

Packaging: Plywood case

Shipping: by sea or by air.

               Customers can use their own shipping agent or our shipping agent to deliver the goods for him.



Our Services



•As the content of salt in the seawater is too high, that can not be used directly, there are mainly two methods to desalinate seawater, distillation and reverse osmosis. Distillation is mainly used for super-huge type seawater desalination and heat energy rich area, energy consumption is very high. Reverse Osmosis is very widely applicable, low energy consumption and high desalination rate, so it‘s widely used
•We use the international best quality of seawater RO membrane. The membrane‘s salt removing rate is very high, with stable performance, safe and reliable. The HP pump we used is the international brand which is specialized in seawater desalination. The treated water quality meets the national life drinking water quality standards (GB5749-85), do not add any chemicals, can be used for direct drinking, fresh and sweet.
•For the portable use, reliable water, cheap price etc., after a long time of design and practice, we integrate the reliable technology and advanced technology, make our equipment stand out! From here on, you will experience the different use feelings!

We are making different models for portable seawater desalination machine.
YB-SWRO-500L/day, 1000L/day, 2000L/day, 3000L/day, 5000L/day, 10000L/day, etc. We also can design and customize the machine based on customers' needs.

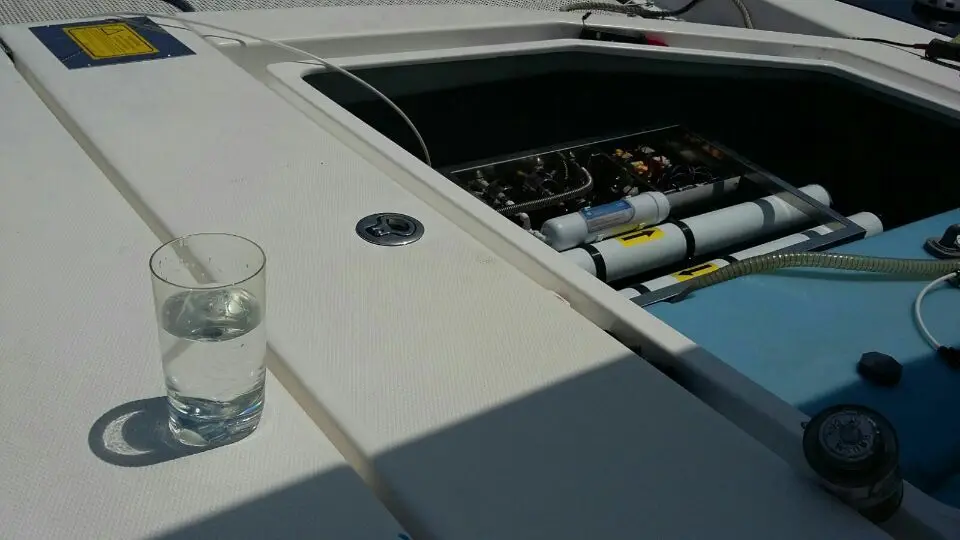

Below is the photo for our machine really application:

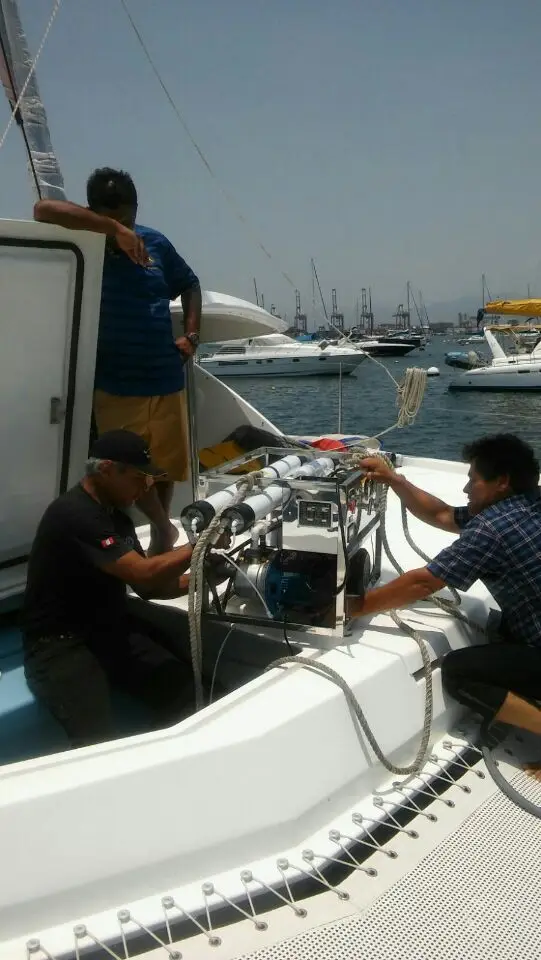

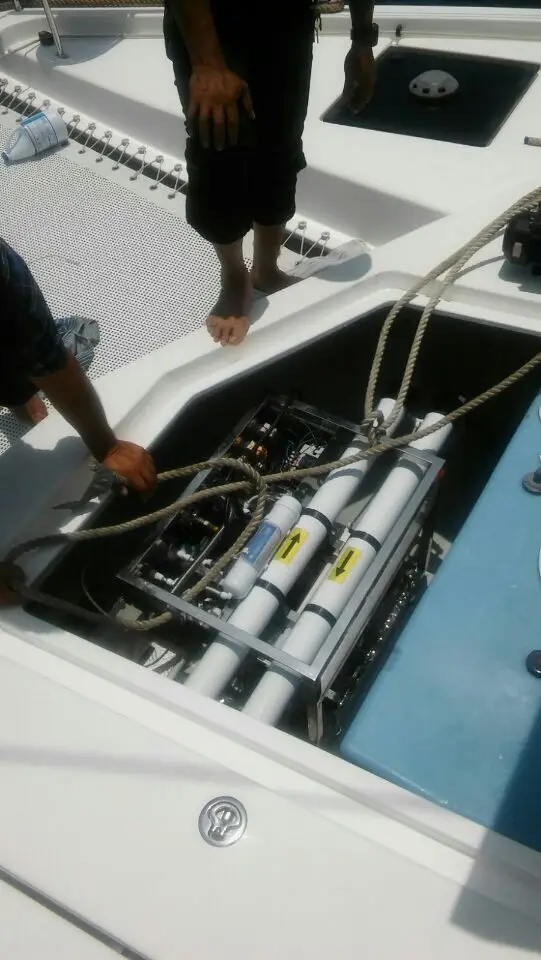

YB-SWRO-2000LPD desalination machine used in yacht (Location: South America)

YB-SWRO-1000LPD desalination machine used in customers' Ships (Location: Indonesia)
